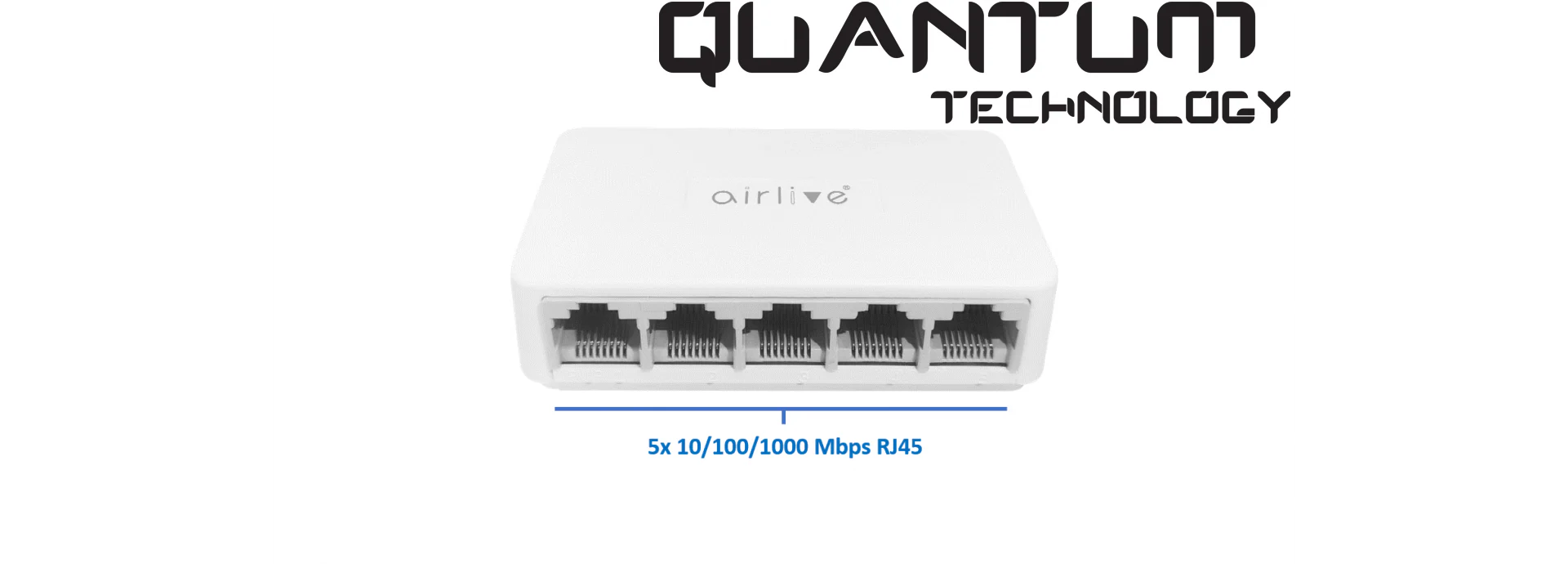

AirLive Live-5GT 5-Port Gigabit Ethernet Switch

Compact 5-Port Unmanaged Gigabit Ethernet Switch designed for home networks, SOHO offices, IP cameras, NAS devices, gaming, and small business environments.

Switch Type:
Unmanaged Plug-and-Play Switch

Ports:
5 × 10/100/1000Mbps RJ45 Gigabit Ethernet Ports

Port Features:
Auto-Negotiation and Auto MDI/MDI-X on all ports.

Standards:

• IEEE 802.3

• IEEE 802.3u

• IEEE 802.3ab

• IEEE 802.3x

Switching Architecture:
Store-and-Forward

Switch Capacity:
10Gbps

Forwarding Rate:
7.44 Mpps

MAC Address Table:
2K Entries

Packet Buffer:
1Mbit

LED Indicators:

• Power

• Link/Activity

Surge & ESD Protection:

• IEC61000-4-2 (ESD)

• IEC61000-4-5 (Surge Protection)

ESD Protection:

• ±8kV Contact Discharge

• ±15kV Air Discharge

Power Surge Protection:

• Power: CM ±4kV / DM ±2kV

• Port: ±4kV

Power Input:
DC 5V / 1A External Power Adapter

Power Consumption:

• Standby: 0.7W

• Maximum: <2W

Cooling Design:
Fanless for silent operation.

Housing Material:
Plastic

Operating Temperature:
-20°C to +55°C

Storage Temperature:
-40°C to +75°C

Operating Humidity:
5%–90% (Non-Condensing)

Storage Humidity:
5%–95% (Non-Condensing)

Dimensions:
83 × 52 × 22 mm

Package Contents:

• AirLive Live-5GT Switch

• Power Adapter

Certifications:

• CE

• RoHS

Perfect for: Home Networks, SOHO Offices, NAS Devices, Gaming PCs, IP Cameras, Smart TVs, Printers, Network Expansion, and High-Speed Gigabit Ethernet Connectivity. 🚀🌐🔌
