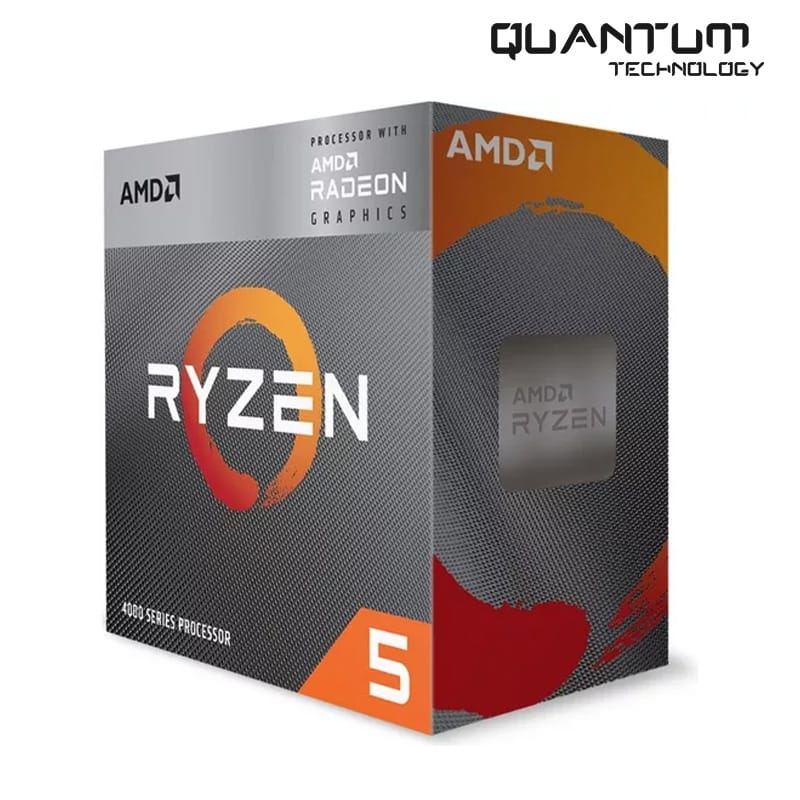

AMD Ryzen 5 4600G Processor

The AMD Ryzen 5 4600G processor is a solid mid-range option for those looking for a capable processor with integrated graphics. Here's a breakdown of its key features:

• Platform

• Desktop

• Product Family

• AMD Ryzen™ Processors

• Product Line

• AMD Ryzen™ 5 4000 G-Series Desktop Processors with Radeon™ Graphics

• Former Codename

• “Renoir”

• Architecture

• “Zen 2”

• # of CPU Cores

• 6

• Multithreading (SMT)

• Yes

• # of Threads

• 12

• Max. Boost Clock

• Up to 4.2GHz

• Base Clock

• 3.7GHz

• L1 Cache

• 384KB

• L2 Cache

• 3MB

• L3 Cache

• 8MB

• Default TDP

• 65W

• AMD Configurable TDP (cTDP)

• 45-65W

• Processor Technology for CPU Cores

• TSMC 7nm FinFET

• Package Die Count

• 1

• Unlocked for Overclocking

• Yes

• مقبس وحدة المعالجة المركزية

• AM4

• Supporting Chipsets

• X570
• X470
• X370
• B550
• B450
• B350
• A520
• A320

• CPU Boost Technology

• Precision Boost 2

• Instruction Set

• x86-64

• Supported Extensions

• AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

• Max. Operating Temperature (Tjmax)

• 95°C

• *OS Support

• Windows 11 – 64-Bit Edition
• Windows 10 – 64-Bit Edition
• RHEL x86 64-Bit
• Ubuntu x86 64-Bit
• *Operating System (OS) support will vary by manufacturer.

CONNECTIVITY

• USB Type-C® Support

• Yes

• Native USB 3.2 Gen 2 (10Gbps) Ports

• 4

• Native USB 3.2 Gen 1 (5Gbps) Ports

• 0

• Native USB 2.0 (480Mbps) Ports

• 0

• Native SATA Ports

• 2

• PCI Express® Version

• PCIe® 3.0

• Native PCIe® Lanes (Total/Usable)

• 24 / 20

• Additional Usable PCIe Lanes from Motherboard

• AMD X570      16x Gen 3

• AMD X470      2x Gen 3

• AMD X470      8x Gen 2

• NVMe Support

• Boot, RAID0, RAID1, RAID10

• System Memory Type

• DDR4

• Memory Channels

• 2

• Max. Memory

• 128GB

• System Memory Subtype

• UDIMM

• System Memory Specification

• Up to 3200MT/s

• Max Memory Speed

• 2x1R           DDR4-3200

• 2x2R           DDR4-3200

• 4x1R           DDR4-2933

• 4x2R           DDR4-2667

• ECC Support

• No

GRAPHICS CAPABILITIES

• Integrated Graphics

• Yes

• Graphics Model

• Radeon™ Graphics

• Graphics Core Count

• 7

• Graphics Frequency

• 1900 MHz

• USB Type-C® DisplayPort™ Alternate Mode

• Yes

PRODUCT IDS

• Product ID Boxed

• 100-100000147BOX

KEY FEATURES

• Supported Technologies

• AMD StoreMI Technology
• AMD “Zen 2” Core Architecture
• AMD Ryzen™ VR-Ready Premium
• AMD Ryzen 5 4600G Processor
