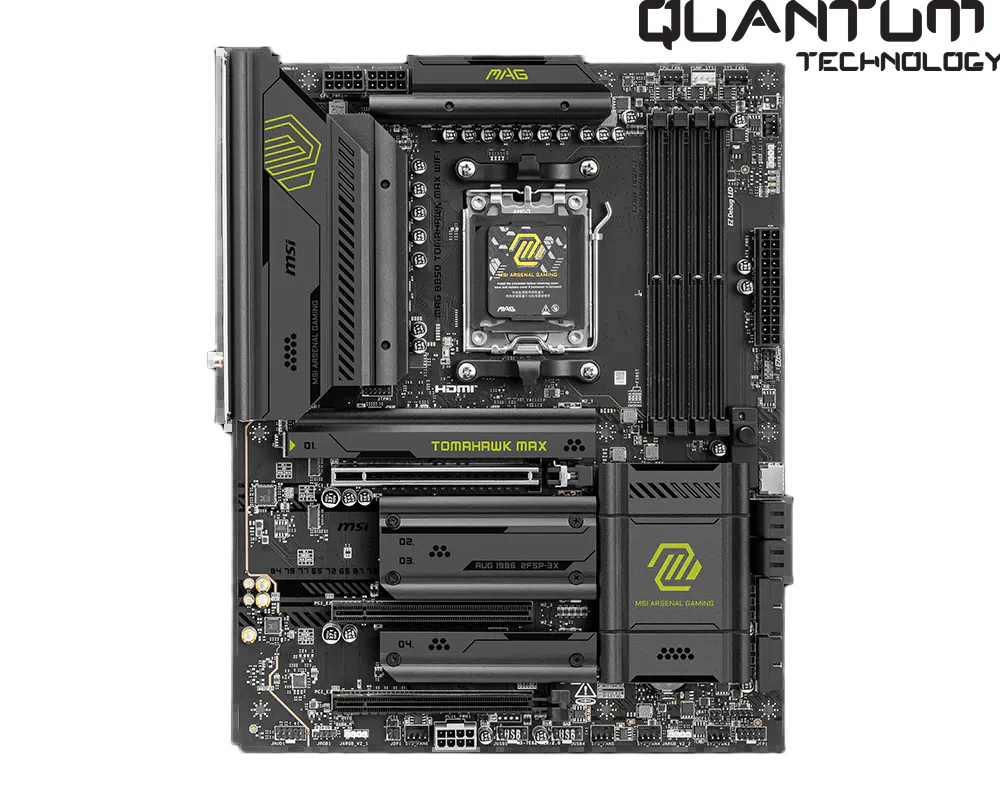

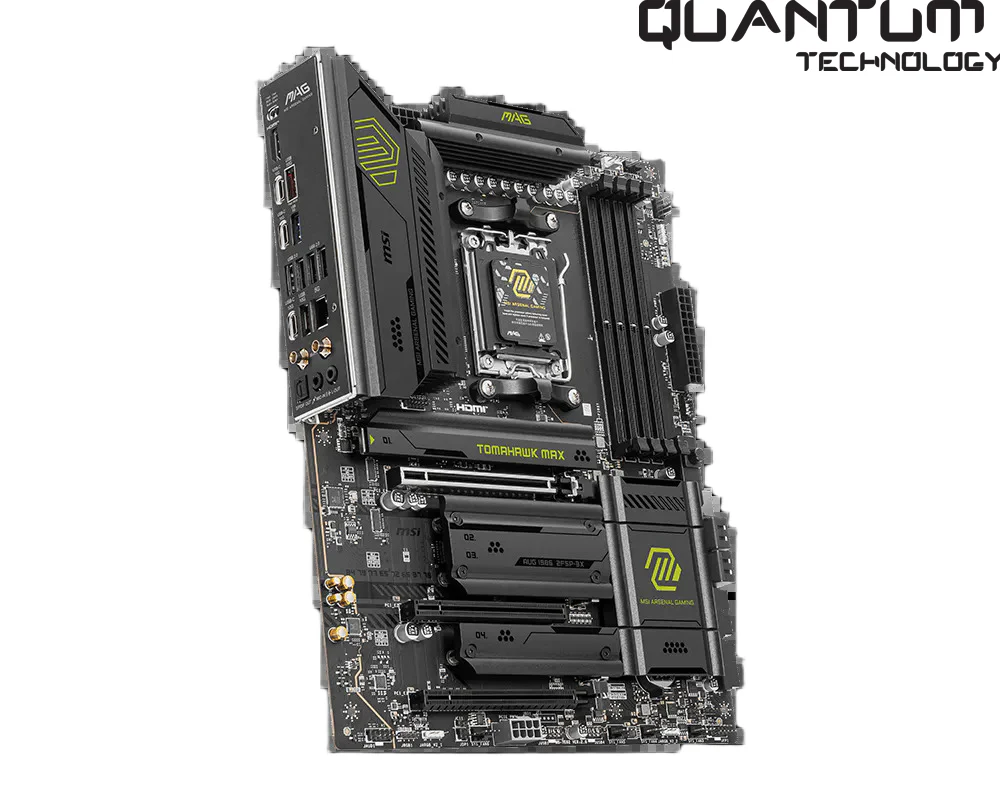

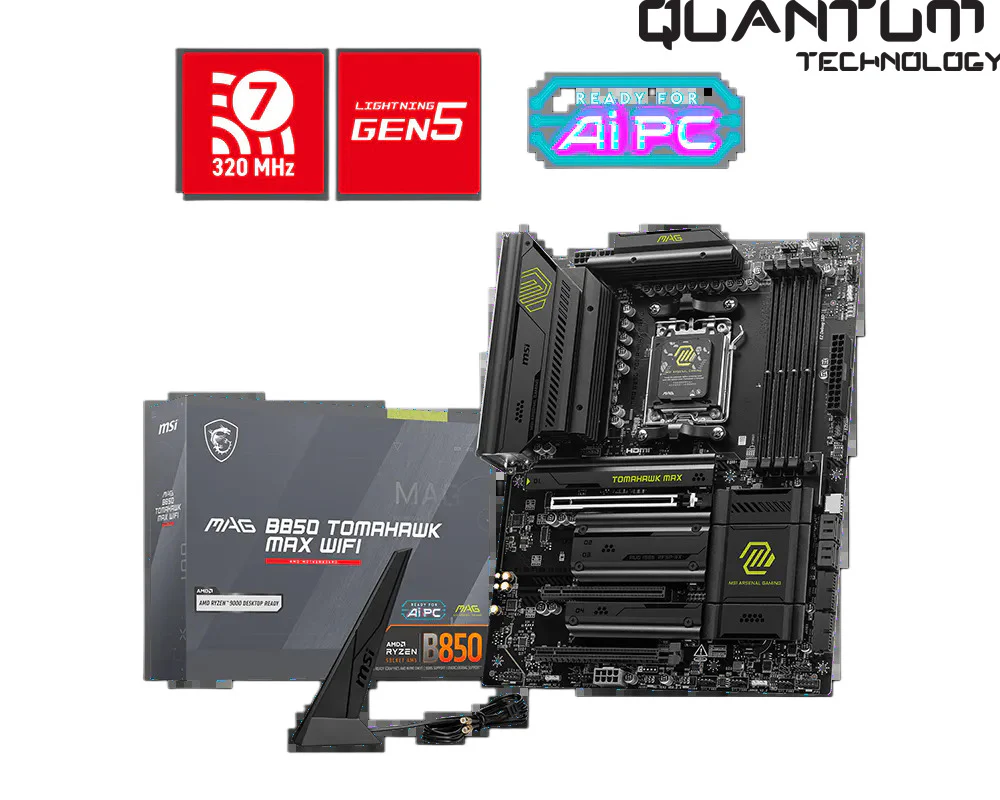

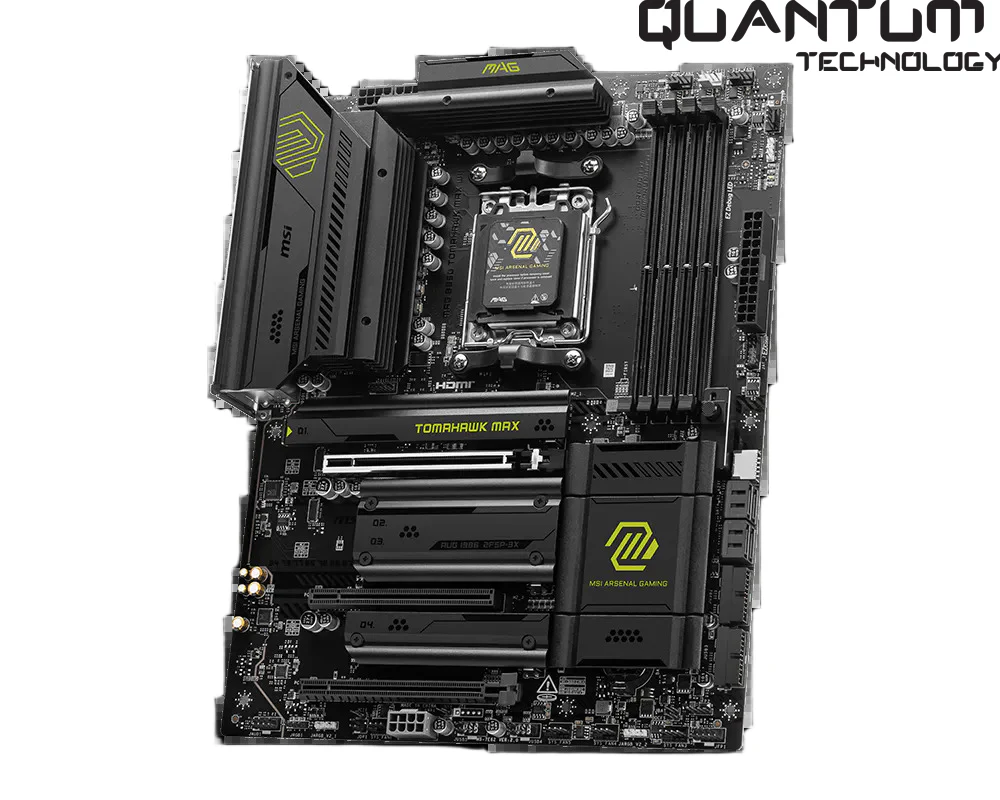

MSI MAG B850 TOMAHAWK MAX WIFI Motherboard

High-performance ATX gaming motherboard built for AMD Ryzen 9000, 8000, and 7000 Series processors, delivering exceptional performance for gaming, content creation, and high-end desktop systems.

CPU Socket:
AM5

Chipset:
AMD B850

Supports Processors:

• AMD Ryzen 9000 Series

• AMD Ryzen 8000 Series

• AMD Ryzen 7000 Series

Form Factor:
ATX

Memory Type:
DDR5

Memory Slots:
4 × DDR5 DIMM

Maximum Memory Capacity:
256GB

Memory Speed:
Up to DDR5 8400+ MT/s (OC)

Memory Architecture:
Dual Channel

Supports:

• AMD EXPO

• Memory Overclocking

• Non-ECC Unbuffered Memory

• CUDIMM Support

Power Design:
14+2+1 Duet Rail Power System

Expansion Slots:

• 1 × PCIe 5.0 x16

• 1 × PCIe 4.0 x4

• 1 × PCIe 3.0 x1

Storage:

• 2 × M.2 PCIe 5.0 x4

• 2 × M.2 PCIe 4.0

• 4 × SATA III 6Gb/s

Supports RAID:

• RAID 0

• RAID 1

• RAID 10

Networking:
Realtek 5GbE LAN

Wireless Connectivity:

• Wi-Fi 7

• Bluetooth 5.4

Audio:
Realtek ALC4080 7.1-Channel HD Audio

Video Outputs (with supported Ryzen processors featuring integrated graphics):

• 1 × HDMI 2.1

Maximum Resolution:
8K @ 60Hz

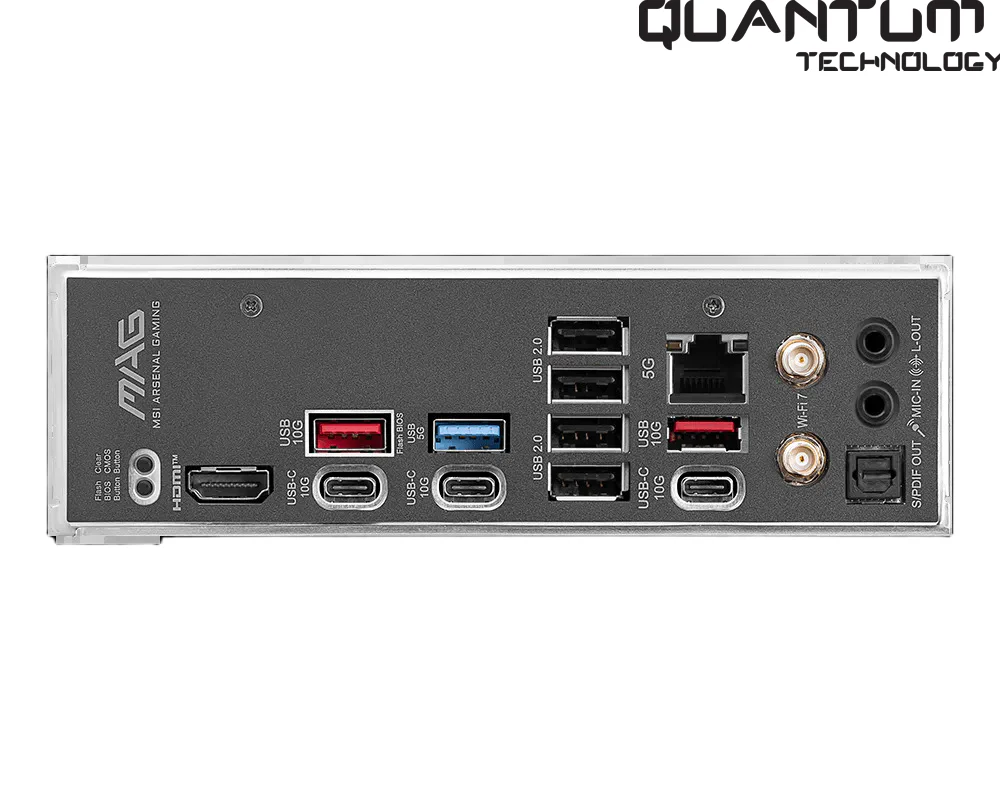

Rear USB Ports:

• 3 × USB 3.2 Gen2 Type-C (10Gbps)

• 2 × USB 3.2 Gen2 Type-A (10Gbps)

• 1 × USB 3.2 Gen1 Type-A (5Gbps)

• 4 × USB 2.0

Internal Headers:

• 1 × USB 3.2 Gen2x2 Type-C Front Header (20Gbps)

• 1 × USB 3.2 Gen1 Front Header

• 2 × USB 2.0 Headers

• 3 × Addressable RGB Gen2 Headers

• 1 × RGB LED Header

• 1 × CPU Fan Header

• 1 × Pump/System Fan Header

• 6 × System Fan Headers

Cooling Features:

• Extended Heatsinks

• EZ M.2 Shield Frozr II

• Smart Fan Control

• High-Performance Thermal Pads

EZ DIY Features:

• EZ PCIe Release

• EZ M.2 Clip II

• EZ M.2 Shield Frozr II

• EZ Antenna

• Flash BIOS Button

• Clear CMOS Button

BIOS Features:

• UEFI BIOS

• Flash BIOS

• EZ Debug LED

• EZ Memory Detection LED

Operating System:
Windows 11 64-bit

Dimensions:
304.8 × 243.84 mm

Perfect for: High-End Gaming PCs, AMD Ryzen 7000/8000/9000 Series Processors, PCIe 5.0 Graphics Cards, Gen5 NVMe SSDs, Content Creation, Overclocking, and Premium Performance Desktop Builds. 🚀🖥️⚡
