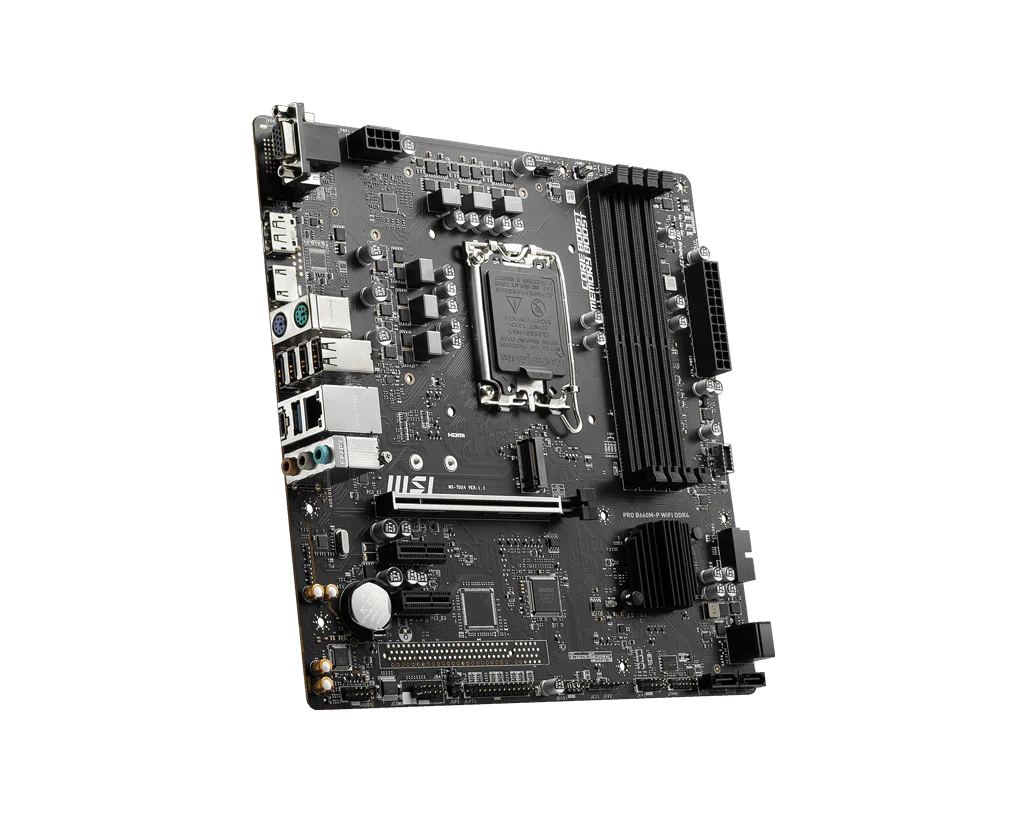

PRO B660M-P WIFI DDR4 MSI

Product image 1
1 / 4

PRO B660M-P WIFI DDR4 MSI

Product Description

Model
Brand MSI
Supported CPU
CPU Socket Type LGA 1700
CPU Type Celeron / Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipsets
Chipset Intel B660
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 1R 3200 / 2666 / 2133 (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ 1DPC 2R Max speed up to 4000+ 2DPC 1R Max speed up to 4000+ 2DPC 2R Max speed up to 3600+
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16 * Actual support may vary by CPU.
PCI Express x1 2 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 1 x M.2 slot (Key M): M2_1 slot (From B660 Chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 10/100/1000Mbps
Wireless LAN Intel 3165NGW Wi-Fi
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1 x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1 x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports
Other Connectors 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x parallel port connector 1 x Serial port 1 x Clear CMOS jumper 4 x EZ Debug LED
Physical Spec
Form Factor Micro ATX
LED Lighting None RGB
Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Windows Compatibility
Windows 11
Supported
