Product Description: ASUS PRIME B760M-R D4

The ASUS PRIME B760M-R D4 motherboard is designed for the latest Intel 12th and 13th Gen processors, providing exceptional performance, stability, and reliability for a wide range of users. This Micro ATX motherboard features the Socket 1700, making it the ideal foundation for building a high-performance system, whether for work, gaming, or general computing. Equipped with DDR4 memory support, the ASUS PRIME B760M-R  offers fast data transfer speeds with 3200 MHz memory and up to 64GB capacity in dual-channel configuration. The motherboard features dual M.2 slots, supporting both PCIe 4.0 and SATA SSDs for ultra-fast storage options, alongside four SATA 6Gb/s ports for additional storage devices. USB 3.2 Gen 2 ports offer quick data transfer, and the Realtek ALC897 audio codec delivers high-quality 7.1 surround sound. The motherboard also includes an integrated Gigabit Ethernet LAN port for reliable wired networking. Whether you're building a gaming rig, a home office PC, or an all-around powerhouse, the ASUS PRIME B760M-R D4 is built to meet the needs of modern users. For more details or to explore other PC components, visit Quantum Technology or check out ASUS's official website.

Product Specifications:

• Brand: ASUS
• Model: ASUS PRIME B760M-R D4
• Socket Type: Socket 1700 (Supports Intel 12th & 13th Gen CPUs)
• Chipset: Intel B760
• Form Factor: Micro ATX
• Memory Support:
  • DDR4 Memory
  • Dual Channel architecture
  • Up to 64GB (Supports 3200 MHz and higher speeds)
• Storage:
  • 2x M.2 Slots (PCIe 4.0 x4 & SATA support)
  • 4x SATA 6Gb/s Ports
• PCIe Slots:
  • 1x PCIe 4.0 x16 Slot
  • 1x PCIe 3.0 x16 Slot (x4 Mode)
  • 2x PCIe 3.0 x1 Slots
• USB Ports:
  • 2x USB 3.2 Gen 2 (1 Type-A, 1 Type-C)
  • 4x USB 3.2 Gen 1 (Type-A)
  • 2x USB 2.0
• Networking:
  • Gigabit Ethernet LAN (Realtek RTL8125B)
• Audio:
  • Realtek ALC897 Audio Codec
  • 7.1-Channel High Definition Audio
• Expansion Slots:
  • 1x PCIe 4.0 x16 Slot (for GPUs)
  • 1x PCIe 3.0 x16 Slot (x4 Mode)
  • 2x PCIe 3.0 x1 Slots

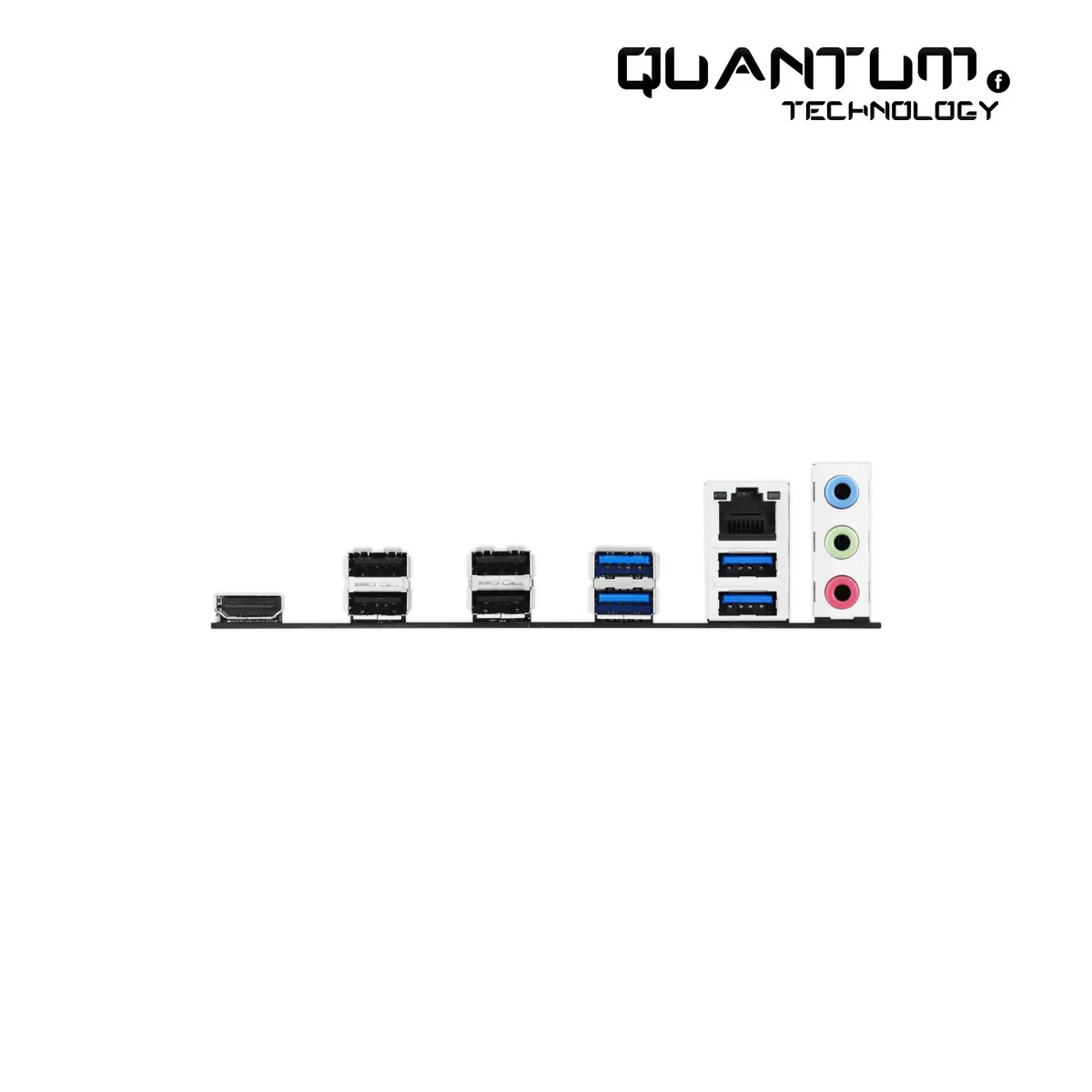

• I/O Ports:
  • 1x PS/2 Keyboard/Mouse Port
  • 1x HDMI Port
  • 2x USB 3.2 Gen 2 (Type-A & Type-C)
  • 4x USB 3.2 Gen 1 (Type-A)
  • 1x Gigabit Ethernet LAN Port
  • Audio Jacks (7.1 Channel)
  • Clear CMOS Button
• Power Connector:
  • 24-pin ATX power connector
  • 8-pin ATX 12V power connector
• Warranty: 3 years
