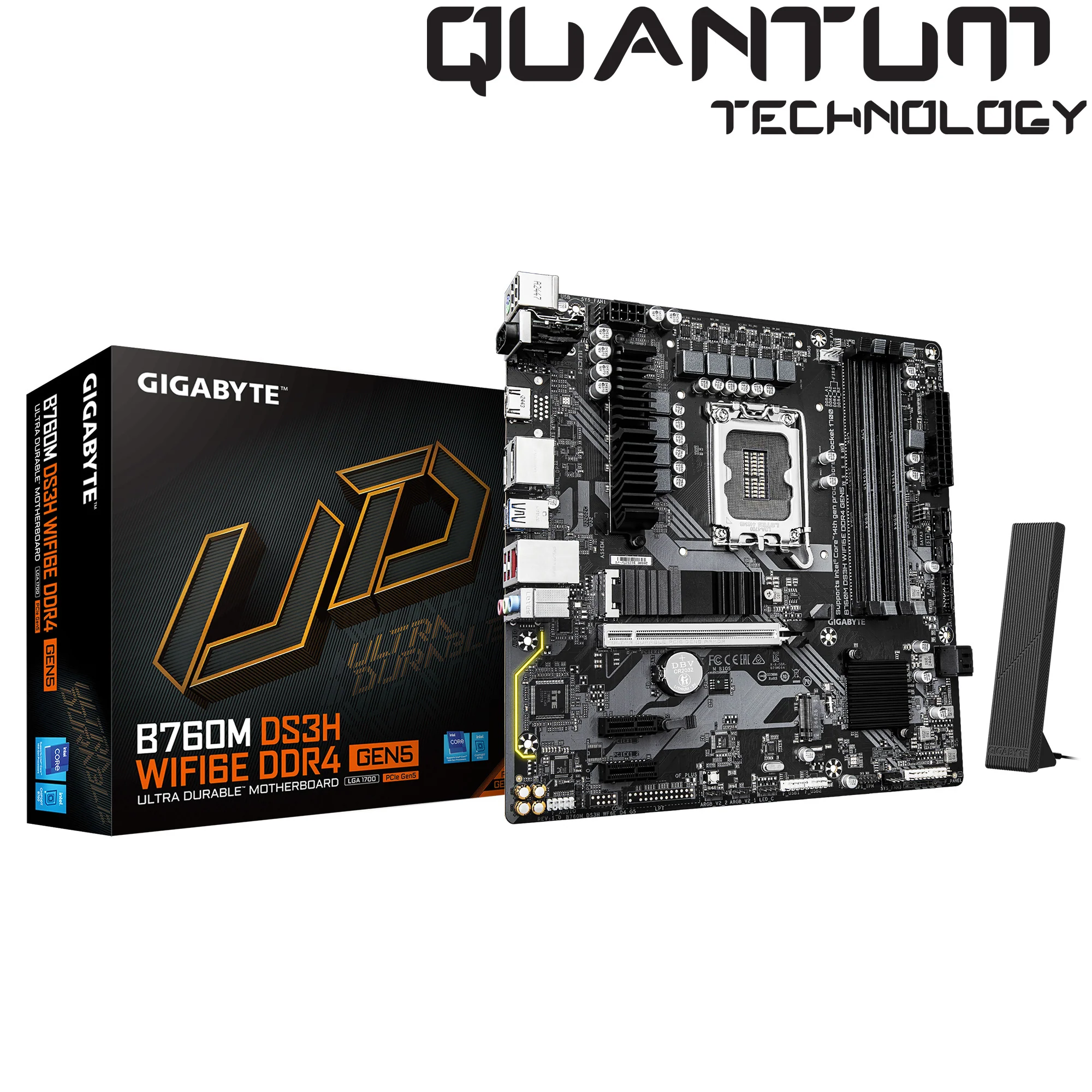

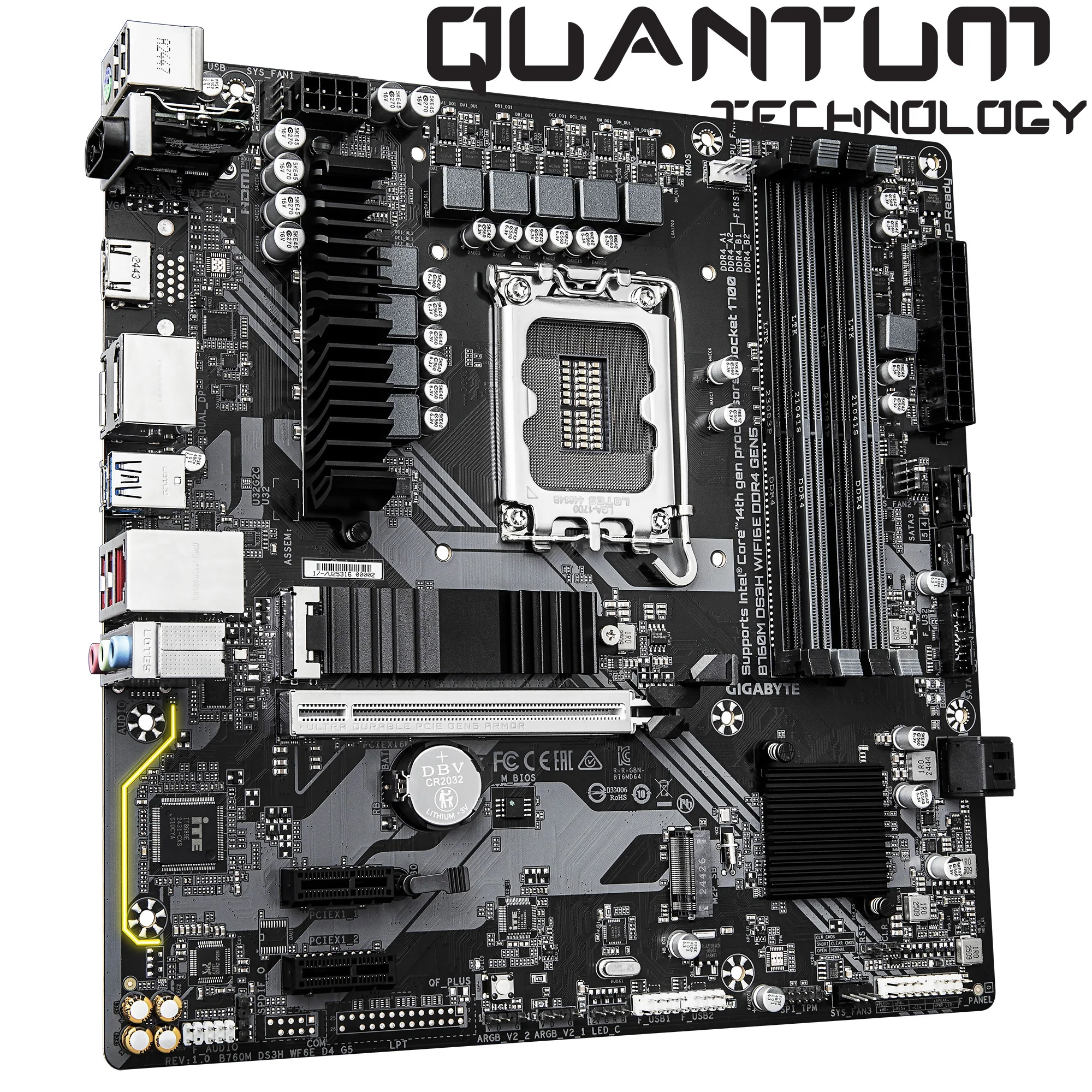

GIGABYTE B760M DS3H WIFI6E DDR4 GEN5 Motherboard

High-performance Micro-ATX gaming motherboard built for Intel 14th, 13th, and 12th Gen processors, delivering reliable performance for gaming, content creation, and productivity.

CPU Socket:
LGA1700

Chipset:
Intel B760 Express

Supports Processors:

• 14th Gen Intel Core

• 13th Gen Intel Core

• 12th Gen Intel Core

• Intel Pentium Gold

• Intel Celeron

Form Factor:
Micro-ATX

Memory Type:
DDR4

Memory Slots:
4 × DDR4 DIMM

Maximum Memory Capacity:
128GB

Memory Speed:
Up to DDR4 5333 MT/s (OC)

Memory Architecture:
Dual Channel

Supports:

• Intel XMP

• ECC UDIMM (Non-ECC Mode)

• Non-ECC Unbuffered Memory

Power Design:
6+2+1 Hybrid Digital VRM

Expansion Slots:

• 1 × PCIe 5.0 x16

• 2 × PCIe 3.0 x1

Storage:

• 2 × M.2 PCIe 4.0 x4 Slots

• 4 × SATA III 6Gb/s Ports

Supports RAID:

• RAID 0

• RAID 1

• RAID 5

• RAID 10

Networking:
Realtek 2.5GbE LAN

Wireless Connectivity:

• Intel Wi-Fi 6E (802.11ax)

• Bluetooth 5.3

Audio:
Realtek High Definition Audio

• 2 / 4 / 5.1 / 7.1-Channel

• S/PDIF Out Support

Video Outputs (with supported Intel processors featuring integrated graphics):

• 1 × HDMI 2.1

• 2 × DisplayPort 1.2

Maximum Resolution:

• HDMI: 4096 × 2160 @ 60Hz

• DisplayPort: 4096 × 2304 @ 60Hz

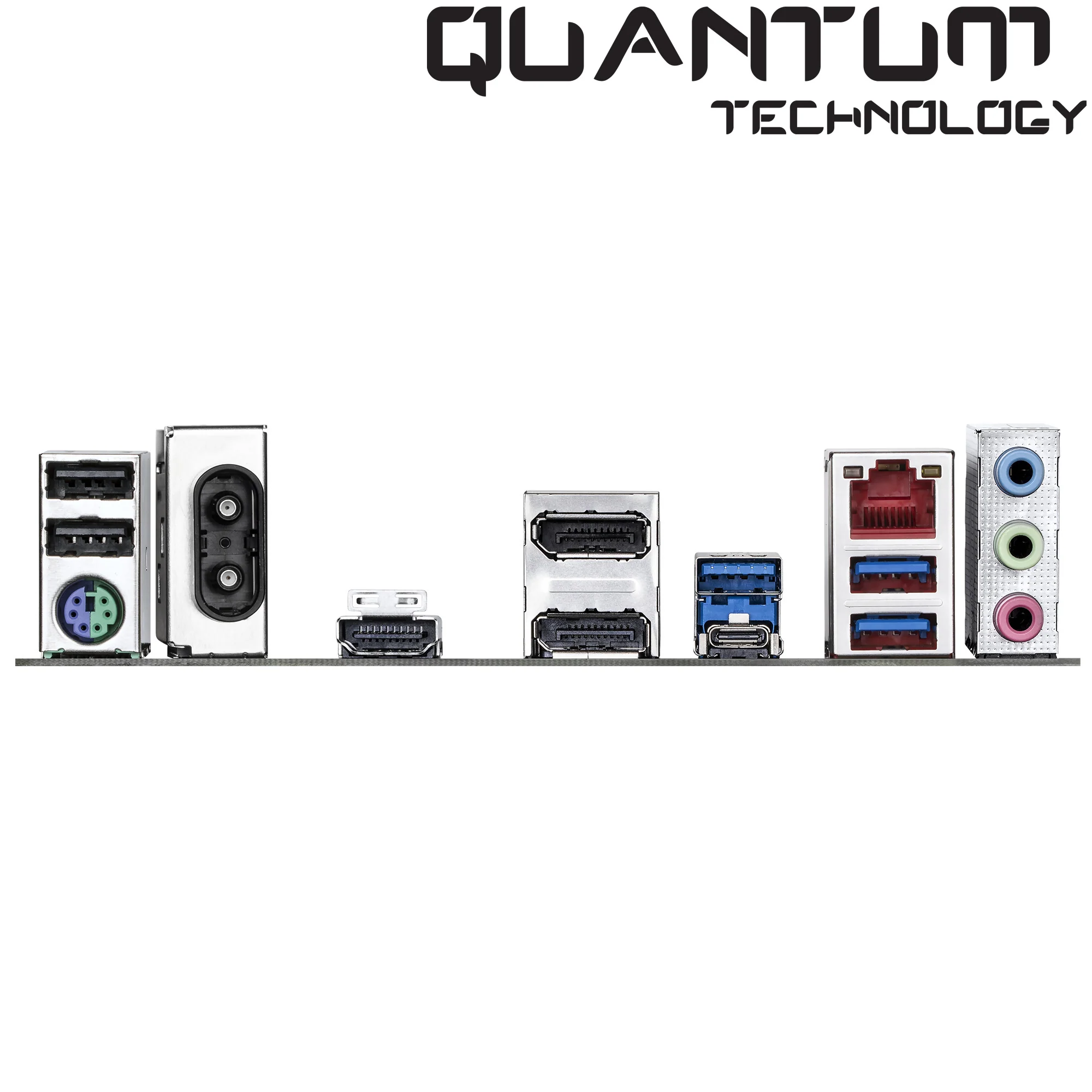

Rear USB Ports:

• 1 × USB 3.2 Gen2 Type-C (10Gbps)

• 3 × USB 3.2 Gen1 Type-A (5Gbps)

• 2 × USB 2.0

Internal Headers:

• 1 × USB 3.2 Gen1 Header

• 2 × USB 2.0 Headers

• 2 × Addressable RGB Gen2 Headers

• 1 × RGB LED Header

• 1 × CPU Fan Header

• 3 × System Fan Headers

• 1 × Q-Flash Plus Button

• 1 × TPM Header

• 1 × Front Panel Audio Header

Cooling Features:

• Smart Fan 6

• Hybrid Fan Headers

• Fan Stop

• Temperature Detection

• Water Cooling Flow Rate Detection

BIOS Features:

• UEFI AMI BIOS

• Q-Flash

• Q-Flash Plus

• Smart Backup

Software Support:

• GIGABYTE Control Center (GCC)

Operating System:

• Windows 11 64-bit

• Windows 10 64-bit

Dimensions:
244 × 244 mm

Perfect for: Gaming PCs, Intel 12th/13th/14th Gen Processors, PCIe 5.0 Graphics Cards, DDR4 High-Speed Memory, Wi-Fi 6E Connectivity, Content Creation, and Performance Desktop Builds. 🚀🖥️⚡ (gigabyte.com)
