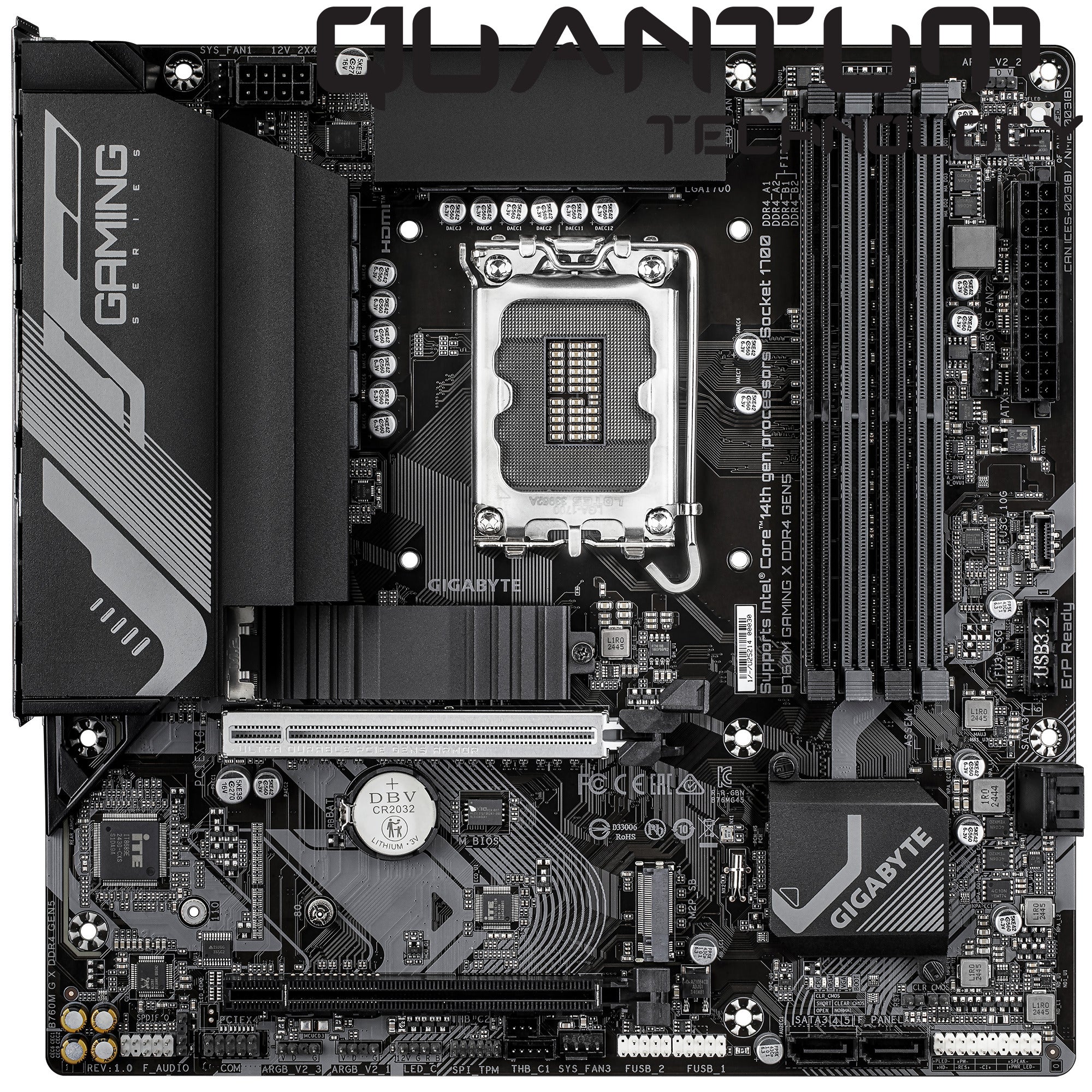

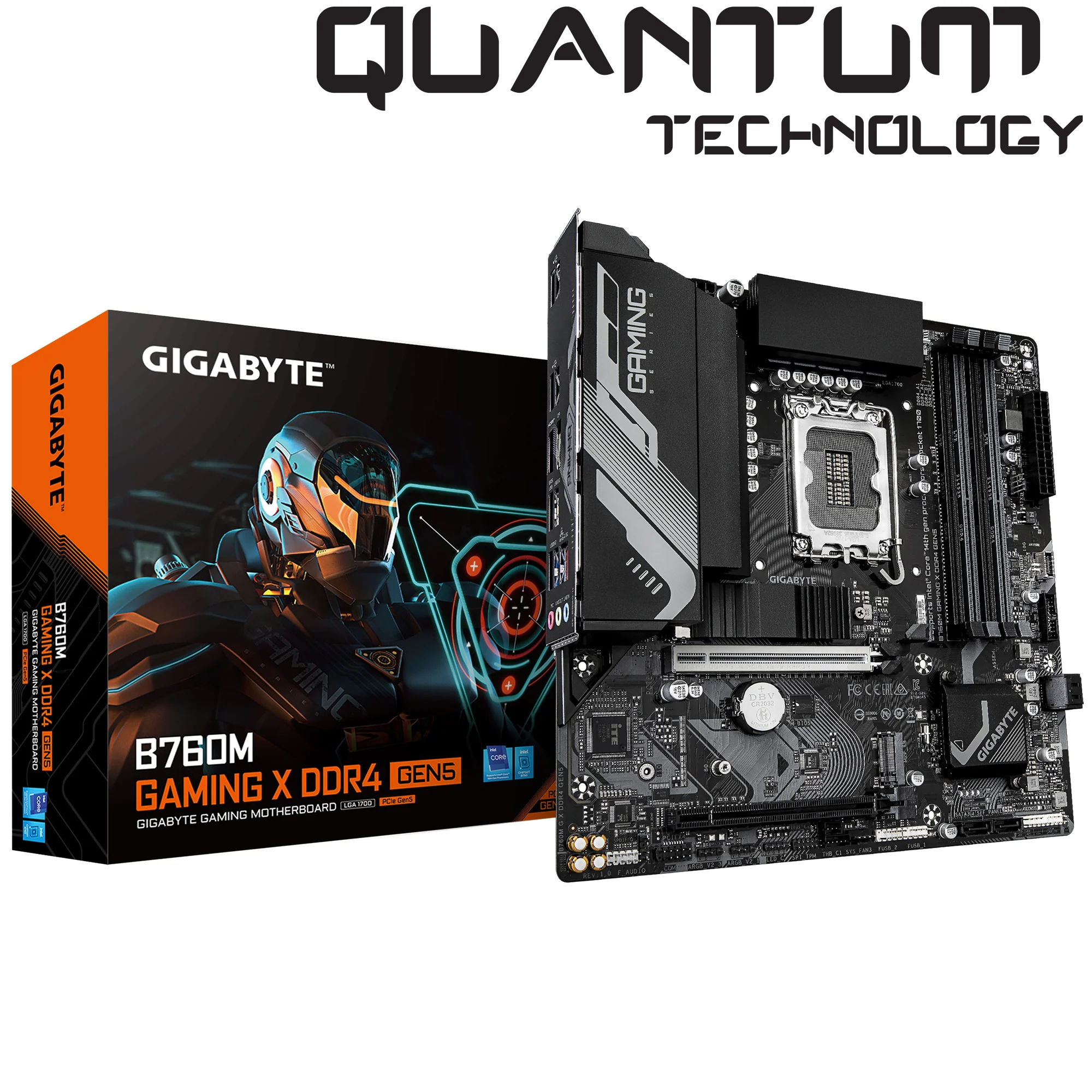

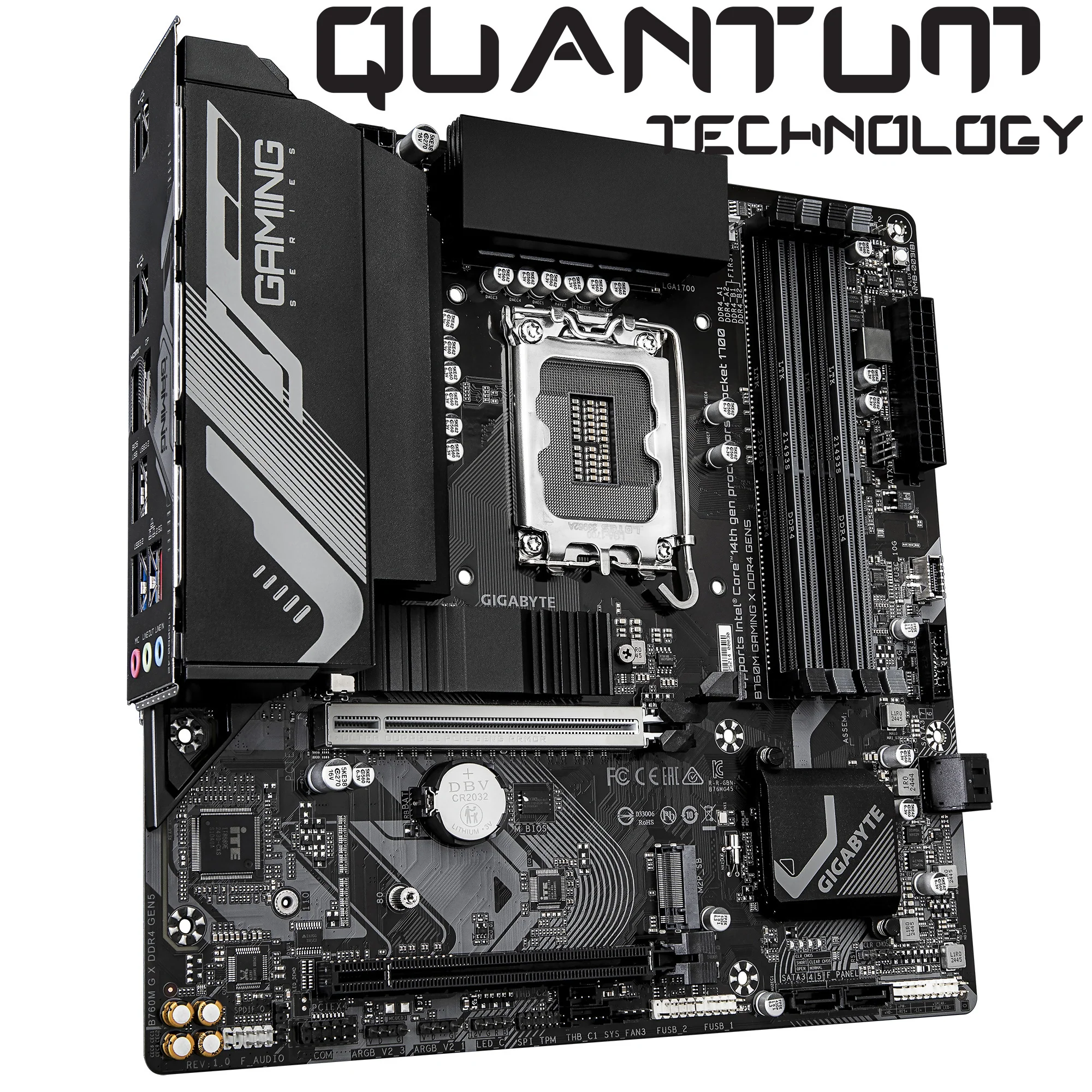

GIGABYTE B760M GAMING X DDR4 GEN5 Motherboard

High-performance Micro-ATX gaming motherboard built for Intel 14th, 13th, and 12th Gen processors, delivering reliable performance for gaming, content creation, and productivity. (GIGABYTE)

CPU Socket:
LGA1700

Chipset:
Intel B760 Express

Supports Processors:

• 14th Gen Intel Core

• 13th Gen Intel Core

• 12th Gen Intel Core

• Intel Pentium Gold

• Intel Celeron

Form Factor:
Micro-ATX

Memory Type:
DDR4

Memory Slots:
4 × DDR4 DIMM

Maximum Memory Capacity:
128GB

Memory Speed:
Up to DDR4 5333 MT/s (OC)

Memory Architecture:
Dual Channel

Supports:

• Intel XMP

• ECC UDIMM (Non-ECC Mode)

• Non-ECC Unbuffered Memory

Expansion Slots:

• 1 × PCIe 5.0 x16

• 1 × PCIe 3.0 x4

• 1 × PCIe 3.0 x1

Storage:

• 2 × M.2 PCIe 4.0 x4 Slots

• 4 × SATA III 6Gb/s Ports

Supports RAID:

• RAID 0

• RAID 1

• RAID 5

• RAID 10

Networking:
Realtek 2.5GbE LAN

Audio:
Realtek High Definition Audio

• 2 / 4 / 5.1 / 7.1-Channel

• S/PDIF Out Support

Video Outputs (with supported Intel processors featuring integrated graphics):

• 1 × HDMI 2.1

• 1 × DisplayPort 1.2

Maximum Resolution:

• HDMI: 4096 × 2160 @ 60Hz

• DisplayPort: 4096 × 2304 @ 60Hz

Rear USB Ports:

• 3 × USB 3.2 Gen1 Type-A

• 5 × USB 2.0

Internal Headers:

• 1 × USB 3.2 Gen2 Type-C Front Header

• 1 × USB 3.2 Gen1 Header

• 2 × USB 2.0 Headers

• 3 × Addressable RGB Headers

• 1 × RGB LED Header

• 1 × CPU Fan Header

• 3 × System Fan Headers

• 2 × Thunderbolt Add-in Card Headers

Cooling Features:

• Smart Fan 6

• Hybrid Fan Headers

• Temperature Detection

• Fan Speed Detection

• Water Cooling Flow Rate Detection

BIOS Features:

• UEFI AMI BIOS

• Q-Flash

• Q-Flash Plus

• Smart Backup

Software Support:

• GIGABYTE Control Center (GCC)

Operating System:

• Windows 11 64-bit

• Windows 10 64-bit

Dimensions:
244 × 244 mm

Perfect for: Gaming PCs, Intel 12th/13th/14th Gen Processors, PCIe 5.0 Graphics Cards, High-Speed DDR4 Memory, Content Creation, and Performance Desktop Builds. 🚀🖥️⚡ (GIGABYTE)
